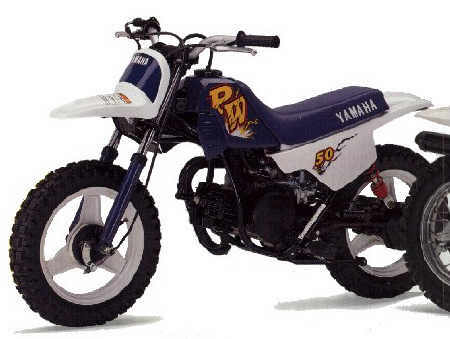

PW50 1997
Engine
Configuration Twostroke air-cooled single Lubrication Autolube (0.35 Litres)
Bore & Stroke 40 x 39.2mm  Ignition CDI
Capacity 49cc  Charging system
Compression Ratio 6 : 1  Starter kickstarter
Maximum Power Transmission
Maximum Torque 0.39 kgf-m (2.8 ft-lb) @ 4,500 rpm Gearbox Automatic
Fuel VM12SC  Clutch n/a
Chassis
Frame Steel main  Wheels
Dimensions  Weight: 37kg (82 lbs) Dry
Wheelbase: 855mm (33.7")
Length: 1,245mm (49")
Seat Height: 485mm (19.1")
Ground Clearance:  105mm (4.1")
Tyres 2.50-10 front
2.50-10 rear
Front Suspension Hydraulic telescopic  Brakes Drum front and rear
Rear suspension Fuel Capacity 2 litre (0.4 imp.gal.)
Performance
Top Speed Fuel Economy
Acceleration
Colour Purple and white


Yamaha specifications
